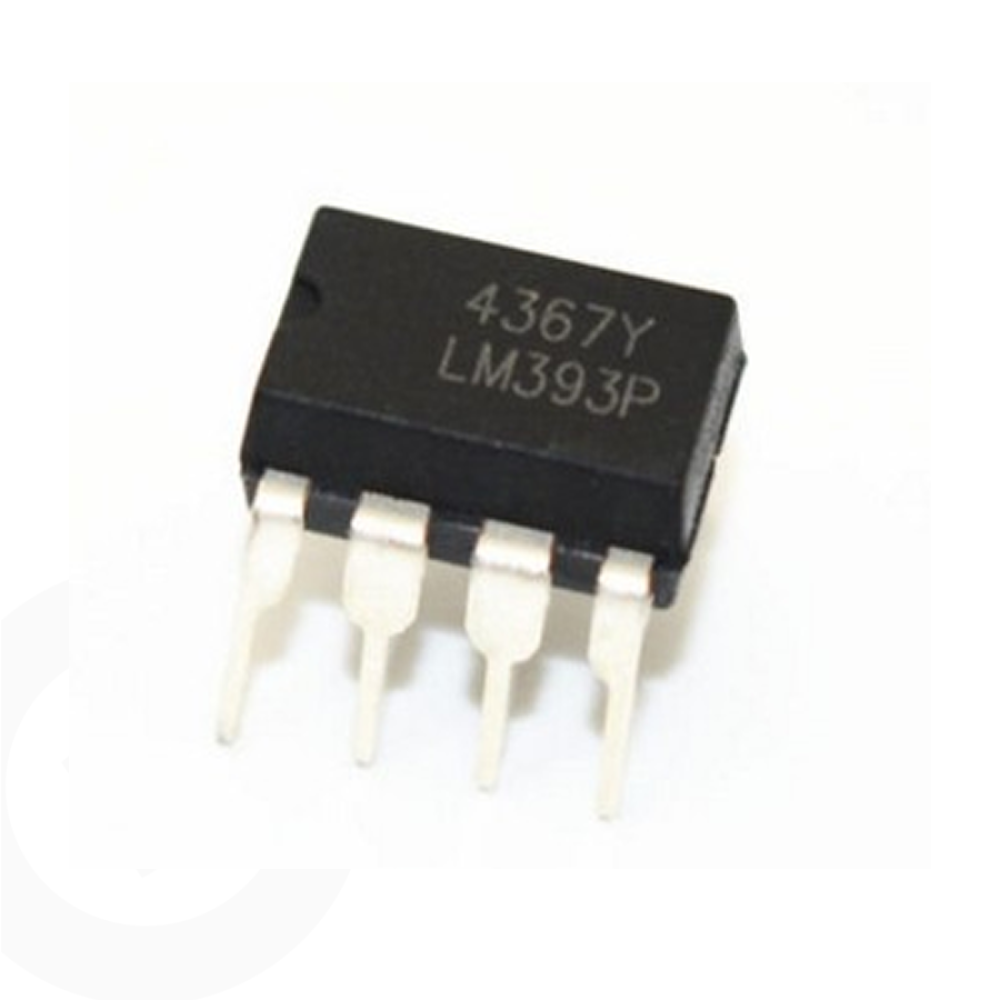

LM393 Entegre
0 yorum
Ürün Kodu: 2018-000-418
Stok Durumu: Stokta var
Ürün Fiyatı 2,54TL
KDV Dahil Fiyat
2,99TL
LM393 teknik açıklama:
Status Active
Amplifier Type COMPARATOR
Average Bias Current-Max (IIB) 0.2500 µA
Bias Current-Max (IIB) @25C 0.2500 µA
Input Offset Voltage-Max 5000 µV
JESD-30 Code R-XDIP-T8
Number of Functions 2
Number of Terminals 8
Operating Temperature-Min -20 Cel
Operating Temperature-Max 85 Cel
Output Type OPEN-COLLECTOR
Package Body Material UNSPECIFIED
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Power Supplies (V) 5
Qualification Status Not Qualified
Response Time-Nom 1400 ns
Seated Height-Max 4.31 mm
Sub Category Comparator
Supply Current-Max 2.5 mA
Supply Voltage Limit-Max 36 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade OTHER
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 9.2 mm
Width 7.62 mm
Paket İçerigi:
1 adet LM393 Entegre
