2N7000 N-Kanal Mosfet ürünü ve diğer tüm Tek Kutuplu (UJT), Çift Kutuplu (BJT), Güç (10-300W aralığı), Küçük anahtarlama (10-200 hFE), Yüksek frekans (HF, VHF, UHF, CATV ve MATV), Küçük sinyal (1-300MHz aralığı) ve Radyo frekans (RF) gibi transistör çeşitlerinin; NPN ve PNP modellerini Sot-23, Sot-23-6, Sot-93, TO-39, TO-72, TO-94, TO-220, TO-247, TO-3P vb. kılıf tiplerinde uygun fiyat aralıklarında üye girişi veya üye olmadan satın alabilirsiniz.
Özellikler
Mfr Package Description LEAD FREE, TO-92, 3 PIN
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Configuration SINGLE WITH BUILT-IN DIODE
Drain Current-Max (Abs) (ID) 0.2000 A
Drain Current-Max (ID) 0.2000 A
Drain-source On Resistance-Max 5 ohm
DS Breakdown Voltage-Min 60 V
Feedback Cap-Max (Crss) 5 pF
FET Technology METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code TO-92
JESD-30 Code O-PBCY-T3
JESD-609 Code e1
Moisture Sensitivity Level NOT APPLICABLE
Number of Elements 1
Number of Terminals 3
Operating Mode ENHANCEMENT MODE
Operating Temperature-Max 150 Cel
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style CYLINDRICAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type N-CHANNEL
Power Dissipation-Max (Abs) 0.4000 W
Qualification Status Not Qualified
Sub Category FET General Purpose Powers
Surface Mount NO
Terminal Finish TIN SILVER COPPER
Terminal Form THROUGH-HOLE
Terminal Position BOTTOM
[email protected] Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Application SWITCHING
Transistor Element Material SILICON
Paket içeriği:

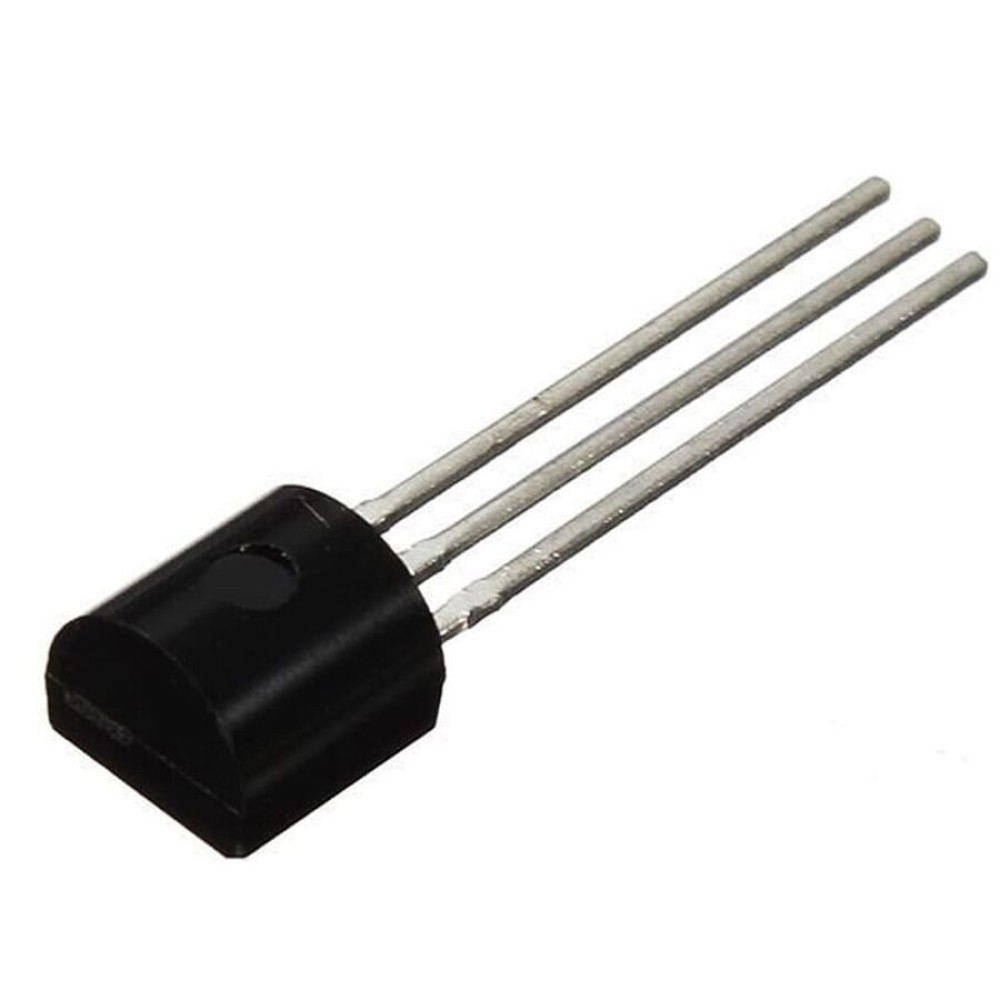

1 Adet 2N7000 Mosfet N-Kanal
Datasheet
